MSP

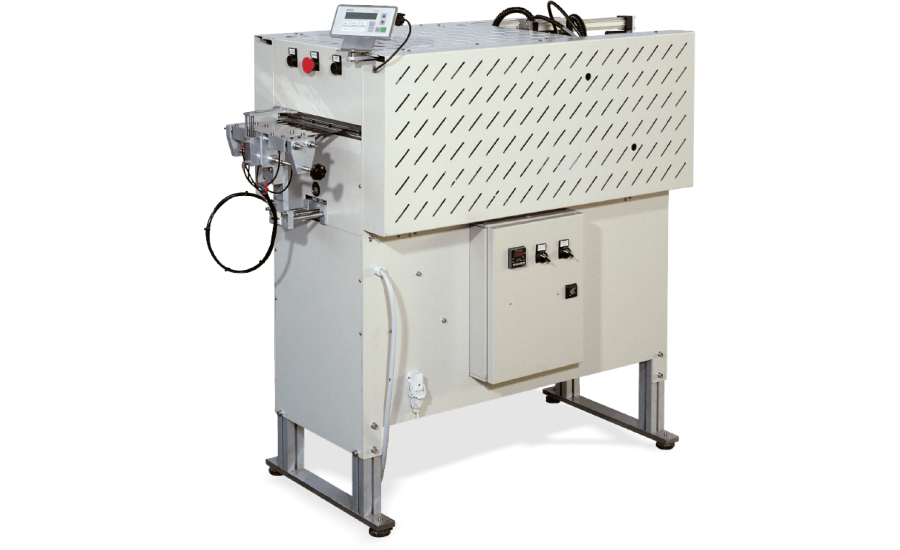

CUFFS LINE / Cuff pressing and fusing machine

Category:
Description

PRODUCT SUMMARY

Production 350 pcs/h
Electrical Power 5,5 Kw
Electrical Supply 380 V 50 Hz
Pneumatic Supply 6 Bar
Air Consumption 4 l/pc
Packing 140x80x165h cm
Weight 280 Kg

This machine was created to work, no matter how high the operator’s capacity to feed the machine may be. The cuff must be reversed manually by the operator and put on the expandable and interchangeable plate, where it will be positioned automatically. The cuff will then go into the machine between two heated conveyors where it will be heated and also fused, according to the pre-cycle. Once completed, the cuff is automatically ironed and plasticized by a heated plate and brought to the stacker, where it will cool until the operator collects all the finished cuffs. The patented unit is also equipped with a PLC to regulate the work cycle through a touch-screen (time and temperature), based on the material type.
