Hot Cloth Drill®

Cloth Drill®

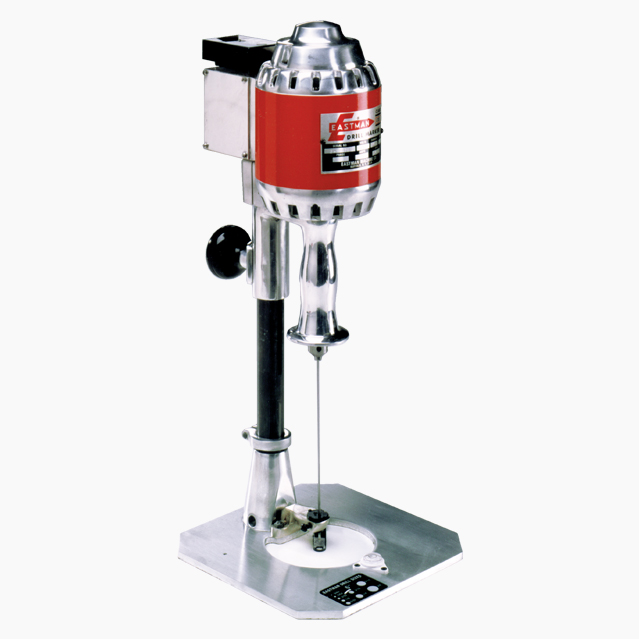

MODEL CD3 – The Eastman Cloth Drill marker can drill holes through numerous layers of fabric, indicating buttonholes, darts, pockets, and other attachment points.

Categories: ,

Description

PRODUCT SUMMARY

The Eastman Cloth drill marker can drill holes through numerous layers of fabric, indicating buttonholes, darts, pockets, and other attachment points.

This is perfect for use on loosely knit, bulky, or quilted spreads, where a mark is needed, but where a burn mark would be unnecessary.

FEATURES

  • Drills holes through numerous layers of fabric to indicate buttonholes, darts or other markings
  • Perfect for use on loosely knit, bulky or quilted spreads where a mark is needed but a burn mark unnecessary
  • Telescoping drive shaft and powerful AC motor for dependability and durability.

ADDITIONAL INFORMATION

Motors 110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz
Horsepower 0.20hp, 1ph 0.34hp, 3ph
Weight 15 lbs. 12 oz. (6.84kg)
Drill Tips Available Standard: Taper Point Optional: Diamond Point, Open End Awl, Closed Awl, PTFE Coated
Drill Diameter English Metric 3/64 in 1.19mm 5/64 in 1.98mm 3/32 in 2.38mm 1/8 in 3.18mm 5/32 in 3.97mm 3/16 in 4.76mm 1/4 in 6.35mm 5/16 in 7.93mm 3/8 in 9.52mm
Drilling Capacity 6 in. (15.2cm) 8 in. (20.3cm) 11.5 in. (29.2cm)
